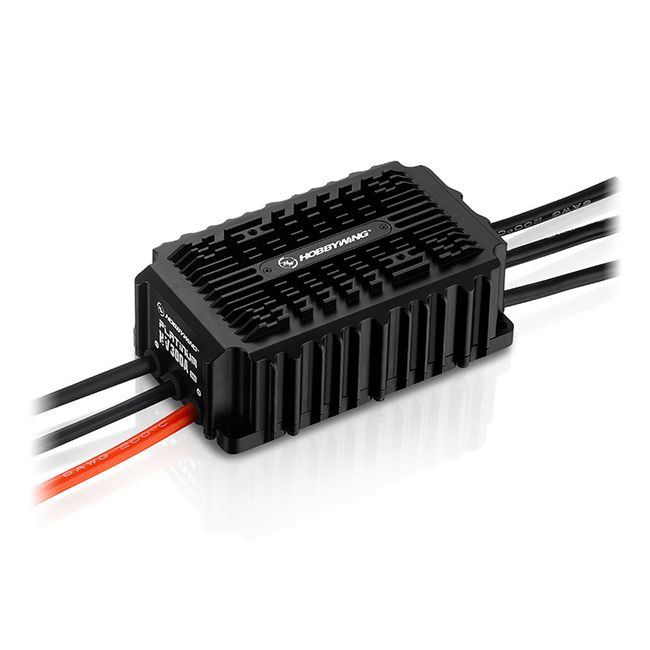

30209250 Hobbywing Platinum Pro 300A HV V4.1 Speed Controller 6-14S SBEC 10A

Hobbywing Platinum Pro 300A HV V4.1 Speed Controller 6-14S SBEC 10A

Connection Wires: Black 8AWG wire output wires
Connection Wires: Black & Red 6AWG input wires
Cont./Peak Current: 300A / 400A
Motor Type: Brushless motor
Applications: Hobbywing firmware
Input: 6-14S Lipo
BEC Output: Switch-mode, 5-8V adjustable
BEC Current (Cont. / Peak): 10A /30A
Throttle Signal / RPM Signal Transmission: (White/Red/Black) Throttle signal wire / Yellow RPM signal wire
Size (LxWxH): 168.8*103.8*61.0 mm
Weight: 1500g
Programming Port: (Brown/Purple/Grey)progarmmeing wire
ESC Programming Via: Multifunction LCD Program Box
